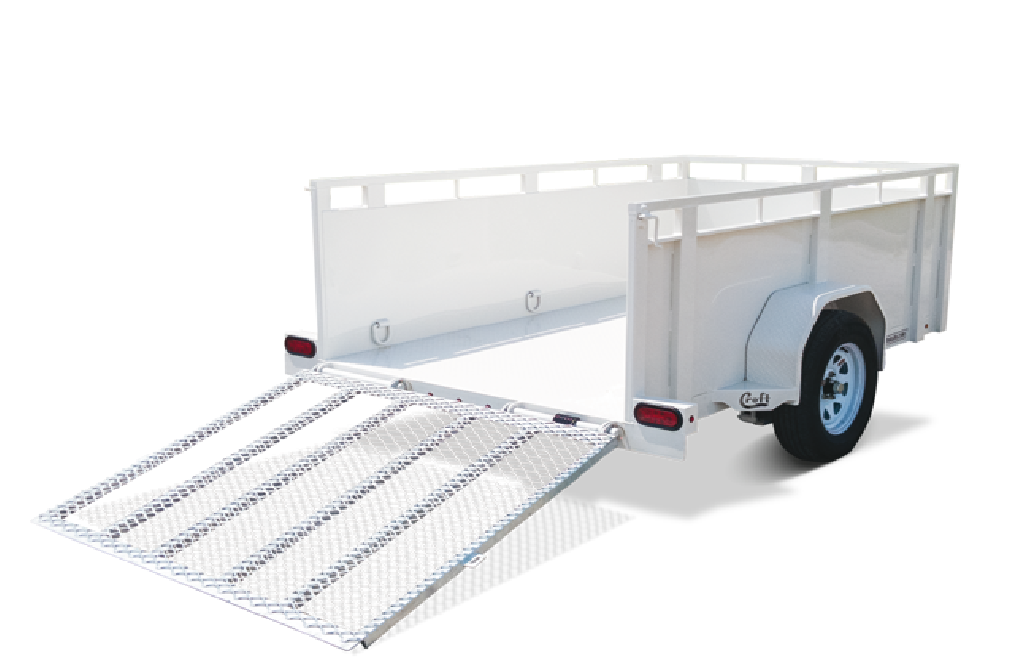

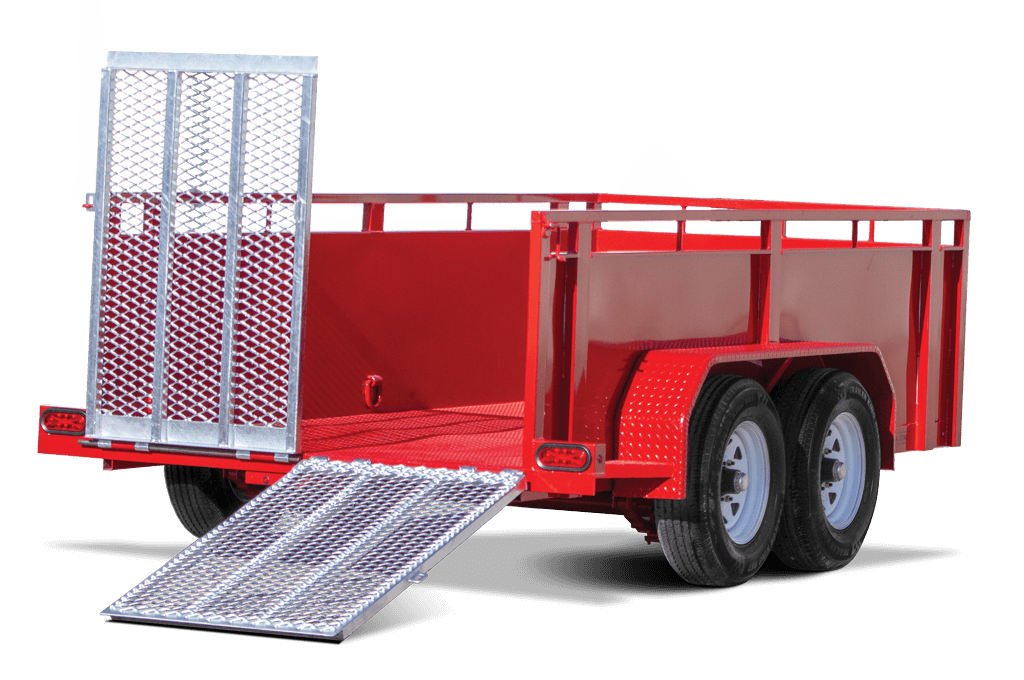

High Side Utility Trailer Side View
High Side Utility Trailer Front View

High Side
Utility Trailer

Since 1939, Croft has brought you the safest and most versatile rental tough trailers. With one of the longest lasting and most durable trailers on the market, Croft invites you to be part of the tradition.

High Side Utility Standard Features

  • Bolt on drop leg 8,000 lb jack
  • 11 Gauge steel sides and front
  • 1-½” Tube top tie down rail
  • Spring assisted, galvanized, ramp gate
  • Adjustable coupler
  • Dexter E-Z Lube axles (optional torsion axle)
  • Molded electrical connection
  • 6-Ply radial tires ST205/75R15 (c)
  • Electric brakes - (optional for single axle)
  • Breakaway system with charger
  • Tube tongue with tube center draw bar
  • Tube frame with angle cross members
  • LED lighting
  • (7) Welded interior D-rings
  • Wiring run though steel conduit
  • 4” Tube body stiffeners
  • Standard powder colors include: white, black, red, blue, orange, gray, and tan
  • ⅛” Diamond plate steel decking
  • Heavy duty 14 guage, double broke, diamond tread plate fenders
  • Media blasted, phosphate washed, high gloss powder coat finish

High Side Utility Model Information

Model Number Size GVWR Payload
Single Axle
CT5080G-32SA 5’ x 8’ x 32” 2,990 1,575
CT5080G-32SA3 5’ x 8’ x 32” 5,200 3,600
CT5010G-32SA 5’ x 10’ x 32” 2,990 1,405
CT5010G-32SA3 5’ x 10’ x 32” 5,200 3,490
CT6010G-32SA3 6’ x 10’ x 32” 5,200 3,365
Tandem Axle - Includes Electric Brakes on all Wheels
CT5012G-32TA2 5’ x 12’ x 32” 7,000 4,985
CT5012G-32TA3 5’ x 12’ x 32” 10,400 8,180
CT6012G-32TA2 6’ x 12’ x 32” 7,000 4,870
CT6012G-32TA3 6’ x 12’ x 32” 10,400 8,055

High Side Utility Popular Options

Single Axle

  • 3,500 lb Electric Brake
  • 3,500 lb Surge Brake
  • 3,500 lb Torsion Axles
  • 5,000 lb Surge Brake
  • 5,000 lb Torsion Axle

Tandem Axle

  • 7,000 lb Surge Brake
  • 7,000 lb Torsion Axle
  • 10,000 lb Surge Brake
  • 10,000 lb Torsion Axle
