This hub assembly includes bearings, races, grease seal, nuts and dust cap for a "42" spindle. 7,000 lb Hub Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # 42 Spindle Bolt Pattern: 8 on 6-1/2" Grease Seal Included, Part No. GS42, (2.25" ID, 3...

This hub assembly includes bearings, races, grease seal, nuts and dust cap for an "A" spindle. 7,000 lb Hub Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # A Spindle Bolt Pattern: 8 on 6-1/2" Grease Seal Included, Part No. GS101, (2.125" ID,...

This hub and drum assembly includes bearings, races, grease seal, nuts and dust cap for an "A" spindle. 7,000 lb Hub and Drum Assembly Use on 3" Axle - 7,000 lb Capacity Bolt Pattern: 8 on 6-1/2" For Use with # A Spindle For Use with 12" x 2" Electric...

This 8 on 6.5" hub assembly includes bearings, races, grease seal, nuts and dust cap for a "42" spindle. 7,000 lb Hub Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # 42 Spindle Bolt Pattern: 8 on 6-1/2" Grease Seal Included, Part No. GS42, (2...

This hub and drum assembly includes bearings, races, grease seal, nuts and dust cap for a "42" spindle. Use on 3" Axle - 7,000 lb Capacity 7,000 lb Hub and Drum Assembly For Use with # 42 Spindle Bolt Pattern: 8 on 6-1/2" For Use with 12" x 2" Electric...

This 8 on 6.5" hub and drum assembly includes bearings, races, grease seal, nuts and dust cap for a "42" spindle. Use on 3" Axle - 7,000 lb Capacity 7,000 lb Hub and Drum Assembly For Use with # 42 Spindle Bolt Pattern: 8 on 6-1/2" For Use with 12" x 2"...

This hub kit includes all of the bearings, races, grease seals, lug nuts and dust caps for a "42" spindle. 7,000 lb Hub Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # 42 Spindle Bolt Pattern: 8 on 6-1/2" Sixteen 1/2" - 20 Wheel Nuts...

This hub assembly kit includes all of the bearings, races, grease seals, lug nuts and dust caps for an "A" spindle. 7,000 lb Hub Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # A Spindle Bolt Pattern: 8 on 6-1/2" Grease Seals Included, Part...

This hub and drum assembly includes bearings, races, grease seal, nuts and dust cap for an "A" spindle. 7,000 lb Hub and Drum Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # A Spindle For Use with 12" x 2" Electric or Hydraulic Brake Bolt...

This 8 on 6.5" hub kit includes all of the bearings, races, grease seals, lug nuts and dust caps for a "42" spindle. 7,000 lb Hub Assembly Use on 3" Axle - 7,000 lb Capacity For Use with # 42 Spindle Bolt Pattern: 8 on 6-1/2" Sixteen 1/2" - 20 Wheel...

This hub and drum kit includes all the bearings, races, grease seals, lug nuts and dust caps for a "42" spindle. 7,000 lb Hub and Drum Assembly Use on 3" Axle - 7,000 lb Capacity For Use with 12" x 2" Electric or Hydraulic Brake Sixteen 1/2" - 20 Wheel...

This hub and drum kit with 9/16" studs includes all the bearings, races, grease seals, lug nuts and dust caps for a "42" spindle. 7,000 lb Hub and Drum Assembly Use on 3" Axle - 7,000 lb Capacity For Use with 12" x 2" Electric or Hydraulic Brake Sixteen...

This 8 on 6.5" hub and drum kit includes all the bearings, races, grease seals, lug nuts and dust caps for a "42" spindle. 7,000 lb Hub and Drum Assembly Use on 3" Axle - 7,000 lb Capacity For Use with 12" x 2" Electric or Hydraulic Brake Sixteen 1/2" -...

Oil Hub with 5/8" studs 10,000 lb Capacity Heavy Duty Oil Hub Only - Dexter Bolt Pattern: 8 on 6-1/2" Includes Races & 5/8" Studs Use with Dexter Drum: 9-027-1 Requires Threaded Oil Cap Use with Dexter Two Piece Hub & Drum system Pilot Diameter:...

Oil Hub with 5/8" studs 10,000 lb Capacity Heavy Duty Oil Hub Only - Dexter Bolt Pattern: 8 on 6-1/2" Includes Races & 5/8" Studs Use with Dexter Drum: 9-027-1 Requires Bolt-On Oil Cap Use with Dexter Two Piece Hub & Drum system Pilot Diameter:...

Bearings, Races, Grease Seal, Dust Cap and Nuts Sold Separately 7,000 lb Capacity Hub and Drum Only Use on 3" Axle - 7,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Stud Size: 5/8" For Use with # 42 or # A Spindle For Use with 12" x 2" Electric or Hydraulic...

Grease Hub & Drum with 5/8" studs 8,000 lb Capacity Grease Hub & Drum Only - Dexter Bolt Pattern: 8 on 6-1/2" Includes Races & 5/8" Studs Pilot Diameter: 4.75" *** Bearings, Seals, Dust Cap and Lug Nuts Sold Separately *** The following...

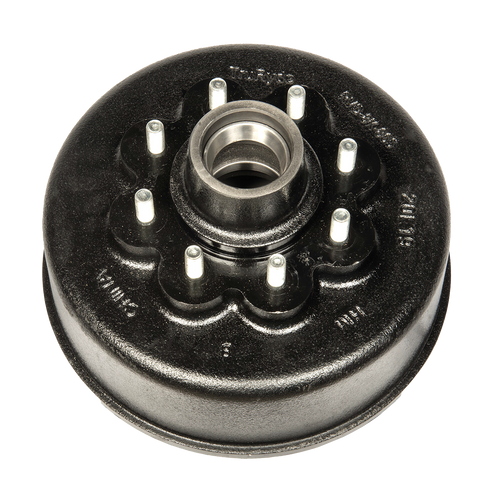

Oil Hub & Drum with 9/16" studs8,000 lb Capacity Oil Hub & Drum Only - DexterBolt Pattern: 8 on 6-1/2"Includes Races & 9/16" StudsPilot Diameter: 4.75"*** Bearings, Seals, Oil Cap and Nuts Sold Separately ***The following Bearings, Seals,...

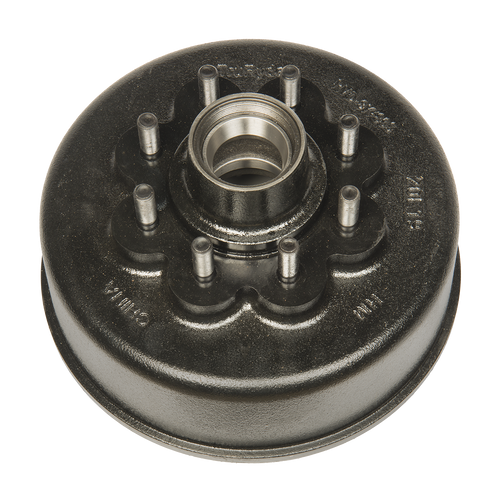

Oil Hub & Drum with 5/8" studs 8,000 lb Capacity Oil Hub & Drum Only - Dexter Bolt Pattern: 8 on 6-1/2" Includes Races & 5/8" Studs Pilot Diameter: 4.75" *** Bearings, Seals, Oil Cap and Nuts Sold Separately *** The following Bearings,...

Grease Hub & Drum with 9/16" studs8,000 lb Capacity Grease Hub & Drum Only - DexterBolt Pattern: 8 on 6-1/2"Includes Races & 9/16" StudsPilot Diameter: 4.75"*** Bearings, Seals, Dust Cap and Lug Nuts Sold Separately ***The following Bearings,...

Grease Hub with 5/8" studs8,000 lb Capacity Grease Hub Only - DexterBolt Pattern: 8 on 6-1/2"Includes Races & 5/8" StudsPilot Diameter: 4.75"*** Bearings, Seals, Dust Cap and Nuts Sold Separately ***The following Bearings, Seals, Dust Caps and Lug...

Grease Hub with 9/16" studs8,000 lb Capacity Grease Hub Only - DexterBolt Pattern: 8 on 6-1/2"Includes Races & 9/16" StudsPilot Diameter: 4.75"*** Bearings, Seals, Dust Cap and Nuts Sold Separately ***The following Bearings, Seals, Dust Caps and Lug...

Oil Hub with 9/16" studs8,000 lb Capacity Oil Hub Only - DexterBolt Pattern: 8 on 6-1/2"Includes Races & 9/16" StudsPilot Diameter: 4.75"*** Bearings, Seals, Oil Cap and Nuts Sold Separately ***The following Bearings, Seals, Dust Caps and Lug Nuts...

Oil Hub with 5/8" studs8,000 lb Capacity Oil Hub Only - DexterBolt Pattern: 8 on 6-1/2"Includes Races & 5/8" StudsPilot Diameter: 4.75"*** Bearings, Seals, Oil Cap and Nuts Sold Separately ***The following Bearings, Seals, Dust Caps and Lug Nuts will...

Oil Hub with 5/8" studs - (Before July 2009) General Duty Oil Hub Only - Dexter 9,000 lb & 10,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Use with Dexter Drum 9-044-1 Includes Races & 5/8" Studs Pilot Diameter: 4.75" Requires Threaded Oil Cap...

Oil Hub with 5/8" studs - (Feburary 1990 to July 2009) General Duty Oil Hub Only - Dexter 9,000 lb & 10,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Use with Dexter Drum 9-044-1 Includes Races & 5/8" Studs Pilot Diameter: 4.75" Note: Dexter's two...

Oil Hub & Drum with 9/16" studs Oil Cap, O-Ring & Plug: 2135, 1045 & 4632 Oil Seal: 1063 Oil Spindle Nut, Washer & Cotter Pin: AN-1, AW-1 & CP18 Outer Bearing: 2475 Inner Bearing: 25580 Includes Races & 9/16" Studs Bearings,...

Grease Hub & Drum with 9/16" studs Inner Bearing: 25580 Outer Bearing: 02475 Grease & EZ Lube Seal: 1036 Grease Nut, Washer & Cotter Pin: AN-1, AW-1 & CP18 EZ Lube Jam Nut, Nut Retainer & Washer (after 2002): 6-191, 6-190 & AW-1...

Oil Hub & Drum with 5/8" studs Pilot Diameter: 4.75" Coned 5/8" Wheel Nut: WN5818R Oil Spindle Nut, Washer & Cotter Pin: AN-1, AW-1 & CP18 Oil Cap, O-Ring & Plug: 2135, 1045 & 4632 Oil Seal: 1063 Bearings, Seals, Oil Cap and Nuts...

Grease Hub & Drum with 5/8" studs EZ Lube Cap & Plug: 21-43-1 & 85-1 Coned 5/8" Wheel Nut: WN5818R Grease Cap: DC605 EZ Lube Castle Nut, Nut Retainer & Washer (prior 2002): AN-1, 5-101 & AW-1 EZ Lube Jam Nut, Nut Retainer &...

Oil Hub with 5/8" studs - (After July 2009) General Duty Oil Hub Only - Dexter 9,000 lb & 10,000 lb Capacity (after July 2009) Bolt Pattern: 8 on 6-1/2" Pilot Diameter: 4.75" Includes Races & 5/8" Studs Use with Dexter Drum 9-123-03 Requires...

Oil Hub & Drum with 5/8" studs General Duty Oil Hub & Drum Kit - Dexter 9,000 lb & 10,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Includes Races & 5/8" Studs Require Threaded Oil Cap Pilot Diameter: 4.75" Use with 12-1/4" x 3-3/8" brake...

Oil Hub with 5/8" studs use with Bolt-On oil cap. General Duty Oil Hub Only - Dexter 9,000 lb & 10,000 lb Capacity (after July 2009) Bolt Pattern: 8 on 6-1/2" Pilot Diameter: 4.75" Includes Races & 5/8" Studs Use with Dexter Drum 9-123-03...

Oil Hub & Drum with 5/8" studs General Duty Oil Hub & Drum Kit - Dexter 9,000 lb & 10,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Includes Races & 5/8" Studs Requires Bolt-On Oil Cap Pilot Diameter: 4.75" Use with 12-1/4" x 3-3/8" brake...

Bearings, Grease Seal, Dust Cap and Nuts Sold Separately 7,000 lb Capacity Hub Only Use on 3" Axle - 7,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Stud Size: 1/2" For Use with # 42 or # A Spindle Inner Bearing Not Included: 25580 Outer Bearing Not...

Dexter Pre-Greased Hub Kit Solution for nearly all spindle types - all parts included regardless of axle type. Save time on installation, with the ready to install kits directly out of the box. Bearings and seal come installed and pre-greased. They also...

Bearings, Races, Grease Seal, Dust Cap and Nuts Sold Separately 7,000 lb Capacity Hub and Drum Only Use on 3" Axle - 7,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Stud Size: 1/2" For Use with # 42 or # A Spindle For Use with 12" x 2" Electric or Hydraulic...

Dexter Pre-Greased Hub/Drum Kit Solution for nearly all spindle types - all parts included regardless of axle type. Save time on installation, with the ready to install kits directly out of the box. Bearings and seal come installed and pre-greased. They...

Bearings, Races, Grease Seal, Dust Cap and Nuts Sold Separately 7,000 lb Capacity Hub and Drum Only Use on 3" Axle - 7,000 lb Capacity Bolt Pattern: 8 on 6-1/2" Stud Size: 9/16" For Use with # 42 or # A Spindle For Use with 12" x 2" Electric or...

Dexter Pre-Greased Hub/Drum Kit Solution for nearly all spindle types - all parts included regardless of axle type. Save time on installation, with the ready to install kits directly out of the box. Bearings and seal come installed and pre-greased. They...

Use with Dexter Brakes 12-1/4" x 4" Note: Dexter's One piece (after July 2009)and Two piece (before July 2009) Hub Drum systems are not interchangeable. Fits Dexter 10k Heavy Duty Axles Drum Size: 12-1/4" x 4" Use with Hub Only: 8-214-05 Mounting Bolts:...

Use with Dexter Brakes 12-1/4" x 3-3/8"Use with Hub Only: 8-288-03This drum was produced by Dexter between Feb. 1990 and July 2009Mounting Bolts: 7-103Drum Size: 12-1/4" x 3-3/8"Fits Dexter 9k & 10k General Duty AxlesFits Dexter 99 SpindleNote:...

Use with Dexter Brakes 12-1/4" x 3-3/8" Drum Only Use with Hub: 8-430-03 Mounting Bolts: 7-103 Drum Size: 12-1/4" x 3-3/8" Fits Dexter 9k & 10k General Duty Axles Fits Dexter 99 Spindle Note: Dexter's two piece hub drum 288 series (Feb. 1990 to July...
